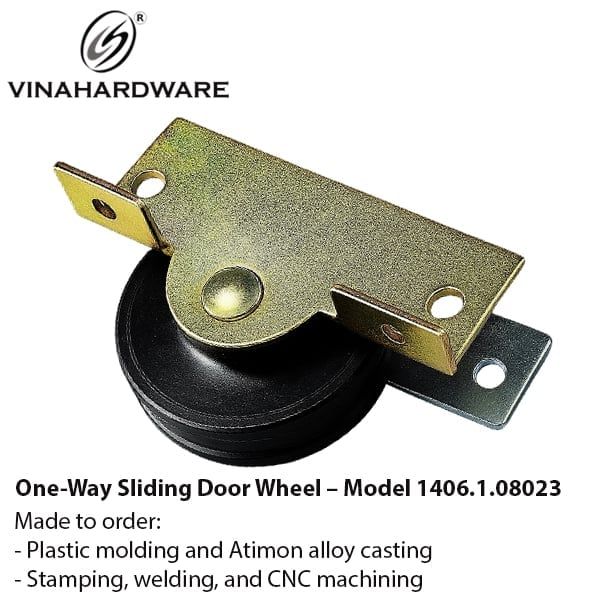

Edge-Mounted One-Way Sliding Door Roller, Ø 40 mm
Model No.: 1406.1.08023 | Brand: VINAHARDWARE
Product Overview
The VINAHARDWARE one-way edge roller is purpose-built for lightweight sliding cabinet doors, under-bed drawers and wardrobe panels. A pressed-steel bracket in yellow-chromate zinc carries a precision POM wheel with sealed ball bearing, ensuring whisper-quiet travel and long service life even in humid bedrooms or kitchens.
| Parameter | Specification |
|---|---|
| Wheel material | POM engineering plastic, white |
| Wheel Ø / width | 40mm |
| Bearing | Press-fit deep-groove ball bearing, ZZ shield |
| Bracket | 1.8 mm cold-rolled steel, Cr³⁺ rainbow zinc |
| Mounting | 4 × Ø5 mm CSK holes, 20 mm × 40 mm pattern |
| Direction | One-way (fixed axle) |
| Static load rating* | 20 kg per piece (*installed pair = 40 kg) |
| Operating noise | < 22 dB at 0.2 m/s |
| Cycle life | ≥ 50 000 runs @ 15 kg |
| Temperature | –20 °C … +80 °C |
Key Advantages
Compact edge-stay bracket – sits flush inside 18 mm panels; no top rail needed.
Low-noise POM wheel – glides smoothly without marking aluminium tracks.
Yellow zinc coating – ≥ 72 h NSS salt-spray for rust defence.
Quick installation – 4 countersunk holes align with common #8 wood screws.
OEM friendly – custom wheel colours, stainless bracket, bearing grade or retail blister pack in 15 days.
Typical Applications
Kitchen cupboard sliders • platform-bed drawers • display-case panels • RV closet doors • DIY furniture kits.
MOQ & Lead Time
MOQ 5 000 pcs • Standard lead time 12-18 working days after 30 % deposit (7-day rush for repeat orders).
Packaging & Shipping
100 pcs/PE bag → 1 000 pcs/carton 32 × 22 × 18 cm (20 kg). Cartons palletised & stretch-wrapped; FSC cartons or bar-coded retail packs available.
Installation Guide
Mark 6 mm from panel bottom, pre-drill Ø3 mm pilot holes, fix bracket with #8 × 16 mm screws, repeat on opposite side; adjust track clearance to 1 mm, test slide.
